Cattle Fountains



This cattle fountain is the result of our hog bar customers requesting high quality cattle drinker, with all the features that have made our hog bars so popular. Model 9150ST is ideal for calves, sheep, and horses.


Cattle Fountains Specifications



Cattle Fountains
Description Model # Width Height Length Capacity Stainless Steel Weight
# 1 9110C 14" 22" 18" 2 50 lbs.
# 2 9129C 14" 22" 24 3/4" 3 1/2 65 lbs.
# 3 w/center float box 9130C 20" 32" 28" 11 105 lbs.
# 3 w/end float box 9130CE 20" 32" 28" 11 105 lbs.
# 3 Combination w/end float box 9130CH 20" 32" 28" 11 130 lbs.
# 3 Combination w/center float box 9130CHC 20" 32" 28" 11 130 lbs.
# 5 Combination w/ center float box 9150CH 25" 34" 31 3/4" 15 175 lbs.
# 5 w/center float box 9150C 25" 34" 31 3/4" 15 129 lbs.
# 5 w/end float box 9150CE 25" 34" 31 3/4" 15 129 lbs.
Smidley Cattle Trough 9150CT 31 3/4" 32" 52" 21 204 lbs.
Smidley Calf/Sheep Trough 9150ST 20 1/2" 24 1/2" 52" 11 130 lbs.

  • 100% 304 stainless steel bowl is standard.
  • Heavy 14 gauge construction.
  • Stainless steel trough.
  • Easy Maintenance.
  • Simple gravity access top cover.
  • Simple and easy part replacement.
  • Energy efficient.
  • High density insulation.
  • Easy to adjust thermostat.
  • For maximum efficiency use the largest tile the waterer will accommodate.
  • All sizes can be modified to fit smaller pads.
  • Combination fountains are for both cattle and hogs.
  • Model 9150ST is ideal for calves.
  • Optional stainless steel base or painted metal.

Downloads

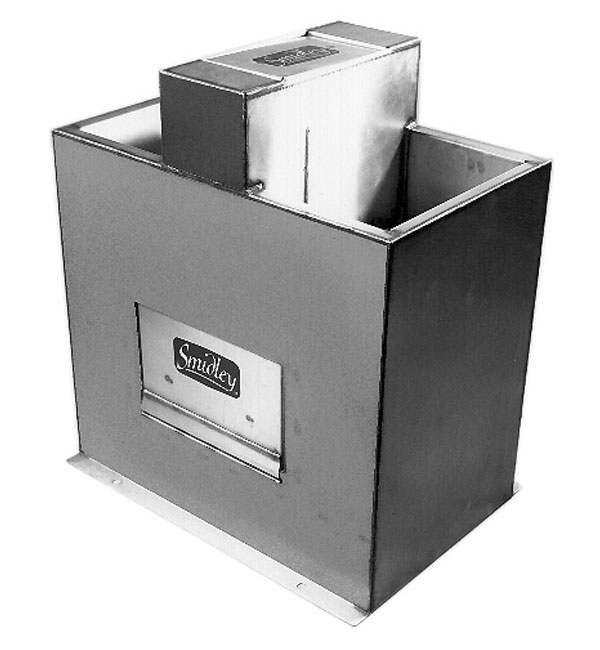

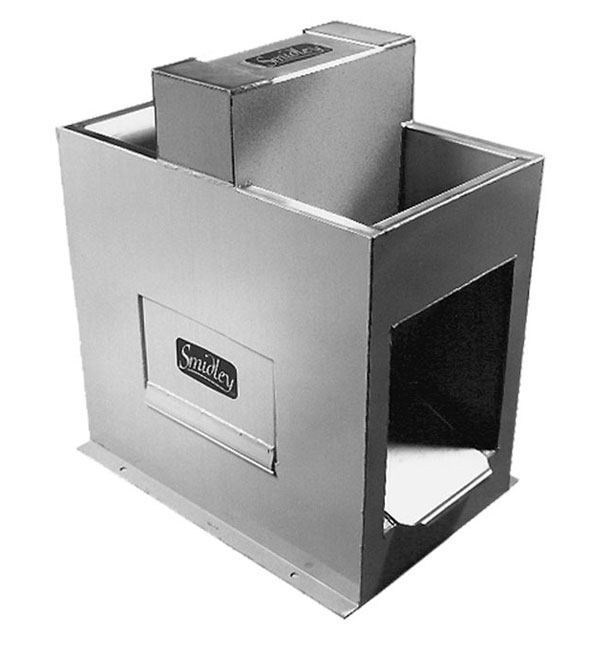

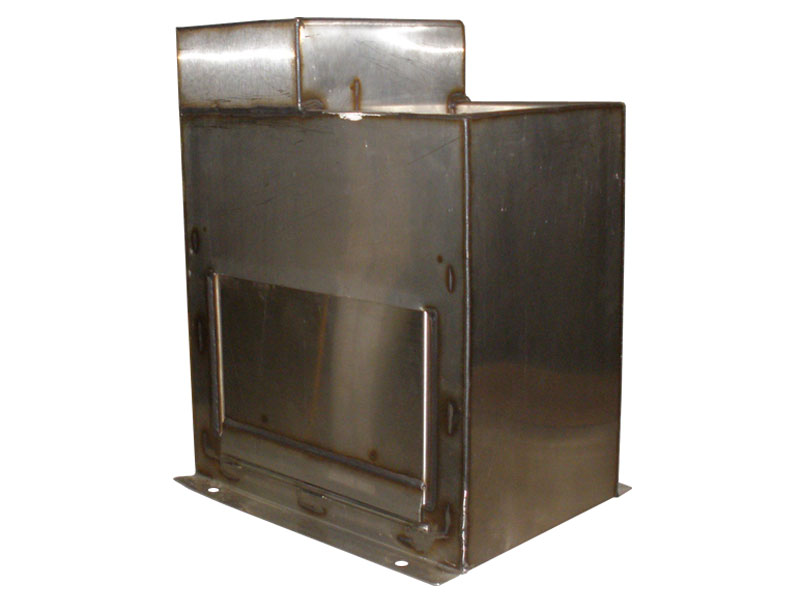

# 1 Calf Fountain # 2 Fountain # 3 Combination Fountain
# 1 Calf Fountain # 2 Fountain # 3 Combination Fountain

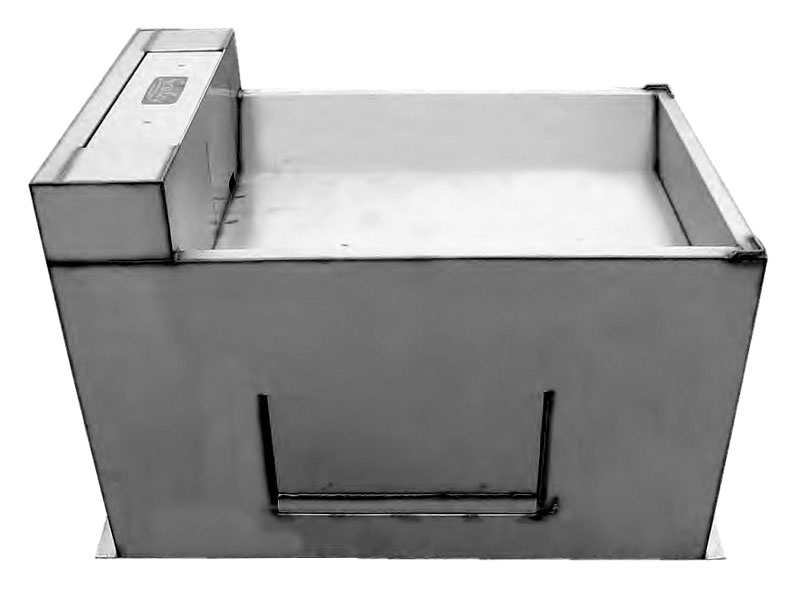

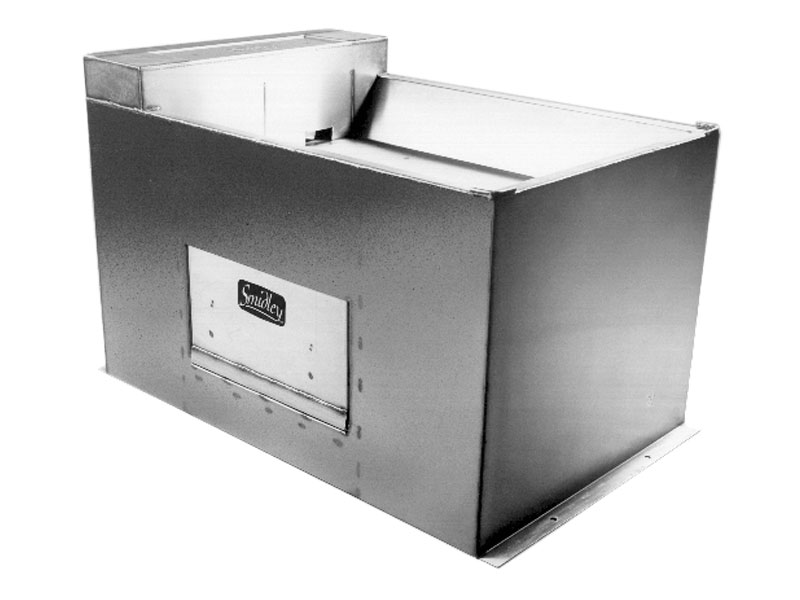

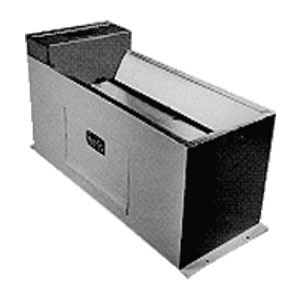

Cattle Trough Front View Cattle Trough Smidley Calf/Sheep Trough
Cattle Trough Front View Cattle Trough Smidley™ Calf/Sheep
Trough
