Farrowing House and Pen



Our Farrowing House is a natural for controlling disease because there is no substitute for sunshine and fresh air. Made of dependable plywood, on slatted floors on oak runners. This is the most economical way to farrow. Great for organic, beginning producers, 4H/FFA, overflow and more.


Farrowing House Specifications



Farrowing House
Model # Size Height to Square Door Opening Height x Width Weight
70682 6' x 8' w/insulated roof, door each end 42 1/2" 34” x 19 1/2" 600 lbs.
70DIV Removable oak cross divider for creep area 42 1/2" 34” x 19 1/2" 40 lbs.

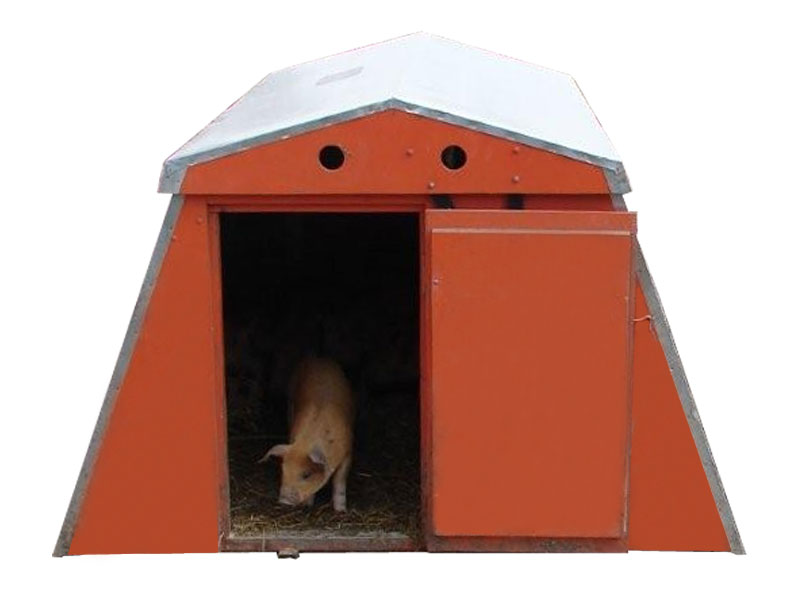

Painted Farrowing House Farrowing House with Pen

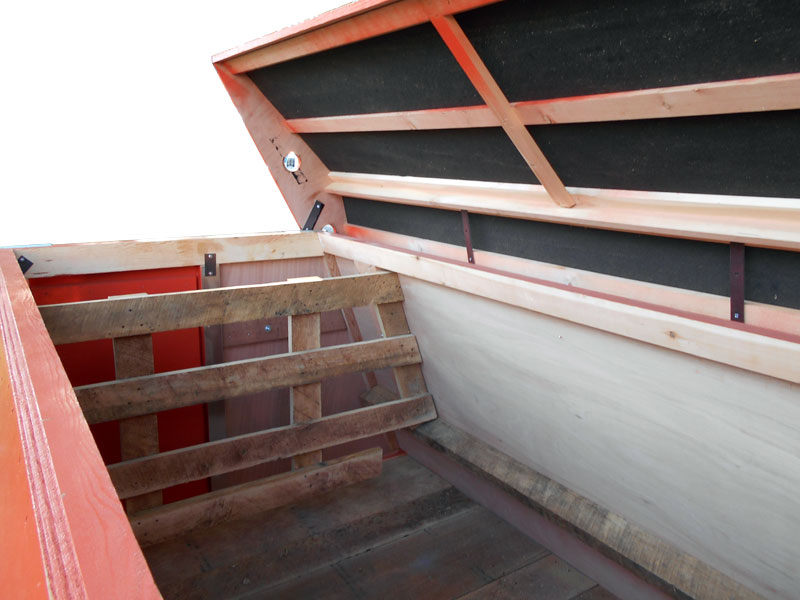

Hog House Inside Divider Painted Farrowing House

  • Galvanized steel-covered Smidley™ roof. Opens to allow sunlight inside the house to sterilize and dry. Also easy access to clean and care for litter.
  • One-half inch roof insulation protects against summer heat and winter moisture condensation.
  • Pig rails on side and back end.
  • House and Pen are on Four 2”x4” Oak Runners.
  • Oak slatted flooring is 1” x 6”.
  • Two coats best orange paint.
  • Extra heavy 5” T hinges bolted on full height door.
  • Two door hooks.
  • Cement coated nails in construction hold houses together securely.
  • We have found that a six-foot wide house is sufficient for sows up to 600 pounds. The sow is forced to lay lengthwise against sloping sides which are equipped with pig rails, thus affording maximum protection for the small pigs.
  • Smidley™ houses are shipped knocked down, easily assembled.
