Smidley™ feed lot equipment is the world’s best. With many years of experience, farmers and ranchers confirm the many advantages of our equipment. Heaviest and best constructed cattle feeder on the market.
Click here to find out what Ohio State University and Rutgers University have to say about Smidley™ Steer Stuffers! |
Steer Stuffer Specifications |
|
Steer Stuffer |
Specifications |
7 Ft. Standard Stuffer Model # 57265 |
7 Ft. Super
Stuffer
Model # 572100 |
10 Ft. Steer
Stuffer
Model # 5102150 |
| Width |
63" |
63" |
63" |
| Length |
89" |
89" |
138" |
| Height to Square |
67" |
82" |
82" |
| Overall Height |
74" |
89" |
89" |
| Capacity Shelled Corn |
65 bu. |
100 bu. |
150 bu. |
| Max. Head Per Feeder |
50 head |
50 head |
75 head |
| Shipping Weight |
1150 lbs. |
1300 lbs. |
2000 lbs. |
* One sided (one half) feeders are available in all sizes at 75% of two sided feeder cost. |
 |
 |
 |
| 10' Steer Stuffer with confinement package |

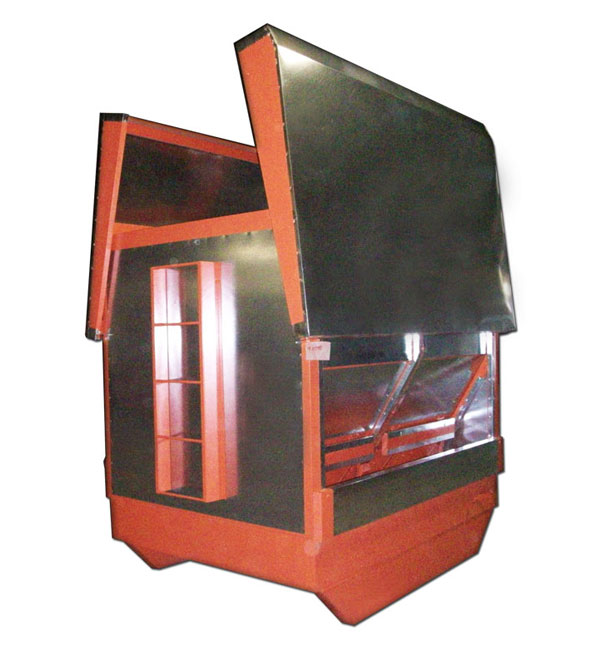

10' Steer Stuffer with confinement package
with roof open |
1/2 7' Steer Stuffer |
 |
 |
 |
1/2 7' Steer Stuffer with confinement package
less roof |
1/2 7' Steer Stuffer with confinement package
less roof |

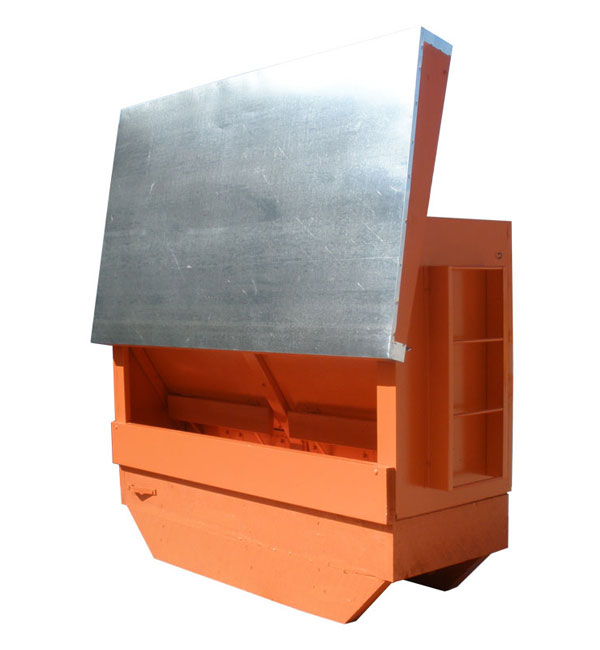

1/2 7' Steer Stuffer
with roof open |
|
|
- Constructed with high quality Douglas fir framing and Medex®
- Base built of white oak.
- Two coats of specially formulated Smidley™ non-toxic paint.
- Bolted on steel ladder for safety and longevity.
- Wide overhang on roof to protect trough area.
- Waste-proof because they are the only feeders built which automatically shut off the flow of feed to the cattle when there is still feed in the trough – no other feeder does this. Patent #2966135.
- Feeds all ground feed, grain, pellets, and shelled corn.
- Cuts labor cost by 80%.
- Feeds both beef and dairy cattle.
- Increases gain by 10%.
- Reduces feed wastage for higher profits.
Steer Stuffer Options
- 100% 304 Stainless Steel lined bottom.
- Cattle feeder clad with galvanized metal to eliminate any chew problems for dairy beef that have no access to roughage.
- Optional lengthwise bin dividers are also available.
|
| |
|
|
|
|
|
