"R" Style Quick Adjust Feeder |
|
|
Smidley™ makes one of the most durable stainless steel feeders in the swine industry. Smidley's stainless feeders are constructed of the highest quality of 304 SS. All exposed edges are rolled for maximum strength, clean-ability and safety. The feeders are double welded to increase life-span and durability. |
"R" Style Quick Adjust Feeder Specifications |
|
"R" Style Quick Adjust Feeder |
Style “R” Wean-to-Finish Feeder - Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 14831 |
#4, 8 feed openings |
6.8 bu. |
40" |
37 1/2" |
25 3/4" |
95 lbs. |
| 14722 |
#5, 10 feed openings |
8.5 bu. |
50" |
37 1/2" |
25 3/4" |
110 lbs. |
| 14802 |
#6, 12 feed openings |
10.2 bu. |
60" |
37 1/2" |
25 3/4" |
124 lbs. |
| 14834 |
#7, 14 feed openings |
11.9 bu. |
70" |
37 1/2" |
25 3/4" |
137 lbs. |
Style “R” Finish Feeder - Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 14830 |
#4, 8 feed openings |
6.8 bu. |
40" |
37 1/2" |
25 3/4" |
95 lbs. |
| 14643 |
#5, 10 feed openings |
8.5 bu. |
50" |
37 1/2" |
25 3/4" |
110 lbs. |
| 14832 |
#6, 12 feed openings |
10.2 bu. |
60" |
37 1/2" |
25 3/4" |
124 lbs. |
| 14833 |
#7, 14 feed openings |
11.9 bu. |
70" |
37 1/2" |
25 3/4" |
137 lbs. |
Style “R” Feeder with Sight Guards - Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 14840 |
(2), 14" openings |
5.1 bu. |
28" |
37 1/2" |
25 3/4" |
84 lbs. |
| 14760 |
(3), 14" openings |
6.8 bu. |
42" |
37 1/2" |
25 3/4" |
110 lbs. |
| 17456 |
(4), 12.5" openings |
8.5 bu. |
50" |
37 1/2" |
25 3/4" |
114 lbs. |
| 14783 |
(4), 14" openings |
10.2 bu. |
56" |
37 1/2" |
25 3/4" |
148 lbs. |
| 10194 |
(5), 14" openings |
11.9 bu. |
70" |
37 1/2" |
25 3/4" |
175 lbs. |
Style “R” Wet/Dry Feeder - Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 18781 |
(2), 15" openings |
5.1 bu. |
30" |
37 1/2" |
25 3/4" |
100 lbs. |
| 18796 |
(3), 14" openings |
6.8 bu. |
42" |
37 1/2" |
25 3/4" |
115 lbs. |
| 18744 |
(4), 14" openings |
10.2 bu. |
56" |
37 1/2" |
25 3/4" |
134 lbs. |
| 18737 |
(4), 15" openings |
10.2 bu. |
60" |
37 1/2" |
25 3/4" |
144 lbs. |
| 18791 |
(5), 14" openings |
11.9 bu. |
70" |
37 1/2" |
25 3/4" |
148 lbs. |
|
|
- One-bar quick adjust per side, with 16 positive-lock feed positions, for confinement personnel to adjust feed flow easily
- All edges are tightly rolled for maximum strength and easy cleaning
- Double welded for long lifespan
- Shipped fully assembled
- The wean to finish dividers provide maximum flexibility to use the same feeder over the life span of the animals.
- Sight guards provide a visual block for swine to reduce stress during feeding. Smidley’s sight guards are made of stainless steel and welded to the frame for durability. The sight guards are rounded on the ends for optimal safety.
- The spacers, in the wet/dry feeder design, prevents condensation on the feeder surface. Keeping condensation away from the feeder then prevents feed from building up on inside of the feeder, reducing maintenance for personnel.
 |
 |
 |

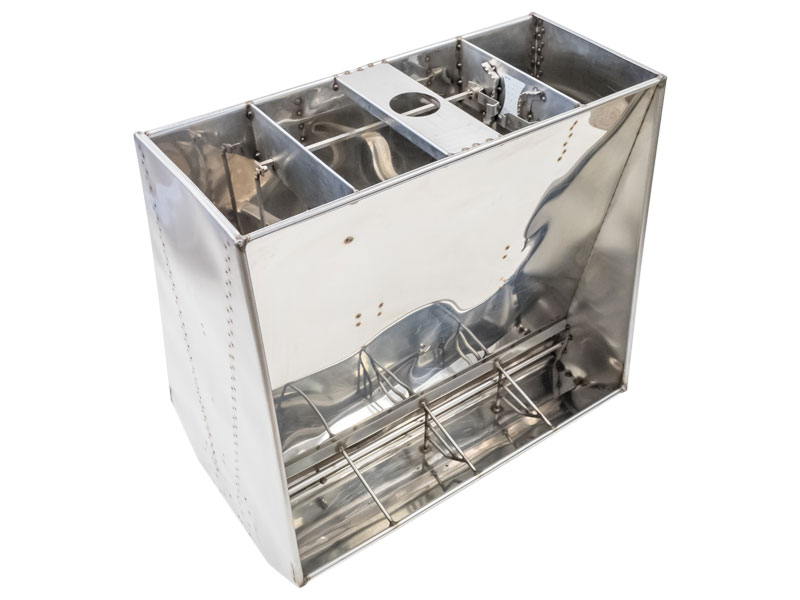

| Wean to Finish Feeder |

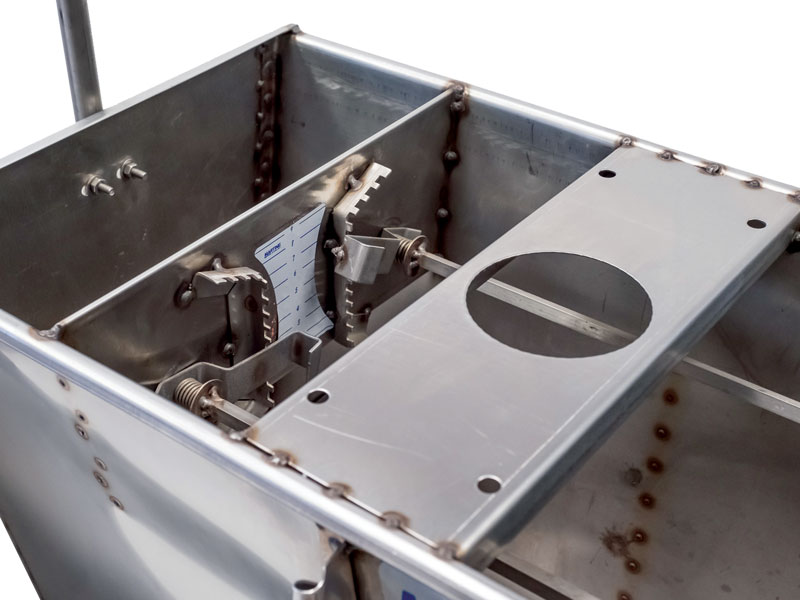

Quick Adjust Bar |

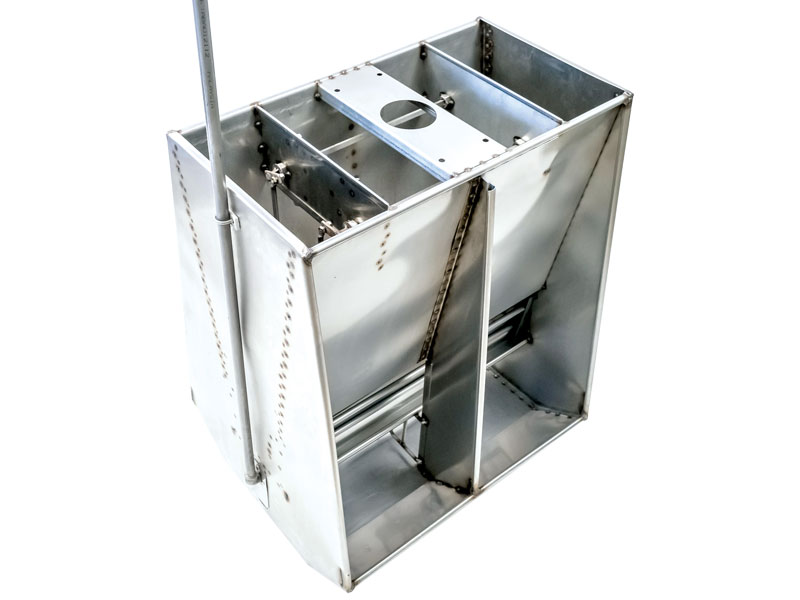

Sight Guards |
|
| |
|
|
|
