Wooden Feeders Specifications |
|
Wooden Feeders |
Regular - Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Width w/ Roof |
Weight |
| 44244 |
#4, 8 feed openings |
16 bu. |
44 1/2" |
44" |
36" |
44 1/2" |
375 lbs. |
| 46244 |
#6, 12 feed openings |
24 bu. |
65 1/8" |
44" |
36" |
44 1/2" |
515 lbs. |
| 48244 |
#8, 16 feed openings |
32 bu. |
85 3/4" |
44" |
36" |
44 1/2" |
640 lbs. |
| 410244 |
#10, 20 feed openings |
40 bu. |
106 3/8" |
44" |
36" |
44 1/2" |
870 lbs. |
| 412244 |
#12, 24 feed openings |
48 bu. |
127" |
44" |
36" |
44 1/2" |
1045 lbs. |
| 414244 |
#14, 28 feed openings |
56 bu. |
147 5/8" |
44" |
36" |
44 1/2" |
1200 lbs. |
Regular - Single Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 44144 |
1/2 #4, 4 feed openings |
8 bu. |
44 1/2" |
44" |
20 1/2" |
250 lbs. |
| 46144 |
1/2 #6, 6 feed openings |
12 bu. |
65 1/8" |
44" |
20 1/2" |
375 lbs. |
| 48144 |
1/2 #8, 8 feed openings |
16 bu. |
85 3/4" |
44" |
20 1/2" |
470 lbs. |
| 410144 |
1/2 #10, 10 feed openings |
20 bu. |
106 3/8" |
44" |
20 1/2" |
595 lbs. |
| 412144 |
1/2 #12, 12 feed openings |
24 bu. |
127" |
44" |
20 1/2" |
745 lbs. |
| 414144 |
1/2 #14, 14 feed openings |
28 bu. |
147 5/8" |
44" |
20 1/2" |
845 lbs. |
Super - Double Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 44260 |
Super 4, 8 feed openings |
30 bu. |
44 1/2" |
60" |
36" |
450 lbs. |
| 46260 |
Super 6, 12 feed openings |
40 bu. |
65 1/8" |
60" |
36" |
630 lbs. |
| 48260 |
Super 8, 16 feed openings |
55 bu. |
85 3/4" |
60" |
36" |
765 lbs. |
| 410260 |
Super 10, 20 feed openings |
65 bu. |
106 3/8" |
60" |
36" |
915 lbs. |
| 412260 |
Super 12, 24 feed openings |
80 bu. |
127" |
60" |
36" |
1100 lbs. |
| 414260 |
Super 14, 28 feed openings |
90 bu. |
147 5/8" |
60" |
36" |
1300 lbs. |
Super - Single Sided |
| Model # |
Size |
Capacity |
Length |
Height |
Width |
Weight |
| 44160 |
1/2 Super 4, 4 feed openings |
15 bu. |
44 1/2" |
60" |
20 1/2" |
285 lbs. |
| 46160 |
1/2 Super 6, 6 feed openings |
20 bu. |
65 1/8" |
60" |
20 1/2" |
435 lbs. |
| 48160 |
1/2 Super 8, 8 feed openings |
27.5 bu. |
85 3/4" |
60" |
20 1/2" |
535 lbs. |
| 410160 |
1/2 Super 10, 10 feed openings |
32.5 bu. |
106 3/8" |
60" |
20 1/2" |
680 lbs. |
| 412160 |
1/2 Super 12, 12 feed openings |
40 bu. |
127" |
60" |
20 1/2" |
840 lbs. |
| 414160 |
1/2 Super 14, 14 feed openings |
45 bu. |
147 5/8" |
60" |
20 1/2" |
915 lbs. |
|
|
- Constructed of Medex®.
- Easy crank top adjust available as an option on all Smidley™ feeders.
- Stainless steel bottom package comes standard on all Smidley™ Hog Feeders.
- Feeders still in use after 30 years of service.
- Stainless steel may be ordered as an option on most metal parts.
- Designed to work against walls or in fence rows. The regular roof opens from the back. The special half roof opens from the front, and is so constructed that the feeder can be set tight and flush with a back wall.
- Can be ordered in either super or regular heights.
- Width on all half feeders 20 1/2” – other measurements same as standard.
- Available in single or double sided.
 |
 |
 |

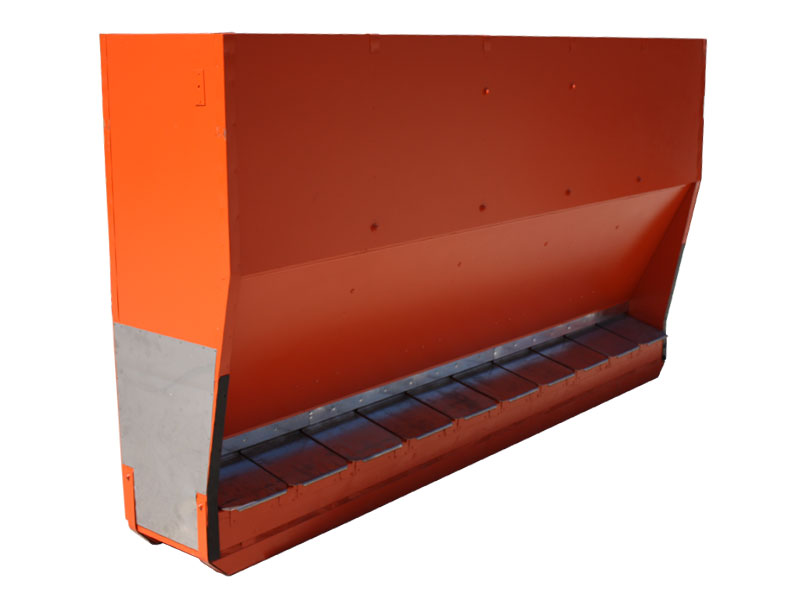

| 1/2 Super 10 Feeder |

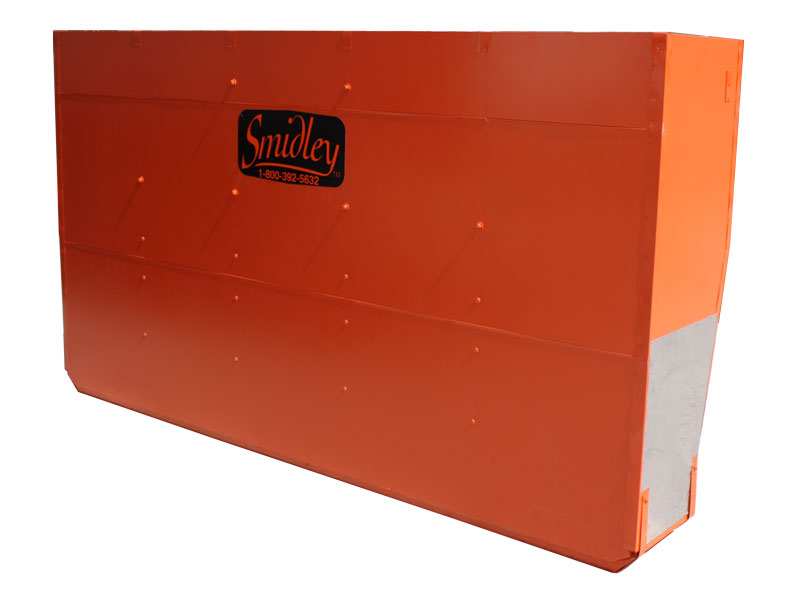

1/2 Super 10 Back View |
Super 8 Feeder |
|
| |
|
|
|
