Hog Bars



World’s finest hog fountain. No more black water, just fresh clean water hogs prefer.


Hog Bars Specifications



Hog Bars
Model # Drinks Width Height Length Shipping Weight Mounting Hole Ends Mounting Hole Lidside
(Center-to-Center)
91501010 10 32" 10 3/4" 57 1/4" 210 lbs. 14 7/8" 55 1/4"
9150166 6 32" 10 3/4" 36 7/8" 150 lbs. 14 7/8" 34 7/8"
9150154 4 32" 10 3/4" 26 3/4" 110 lbs. 14 7/8" 24 3/4"
9150142 2 32" 10 3/4" 16 5/8" 75 lbs. 14 7/8" 14 5/8"
9150152* 2 16 1/2" 10 3/4" 26 3/4" 70 lbs. 11 1/4" 24 3/4"
9150141 1 22 1/2" 10 3/4" 16 5/8" 35 lbs. 17 3/8" 14 5/8"
All hog bars available in half models (drink troughs on one side only.)
*1/2 2 Drink (2 drinks, 1 side)

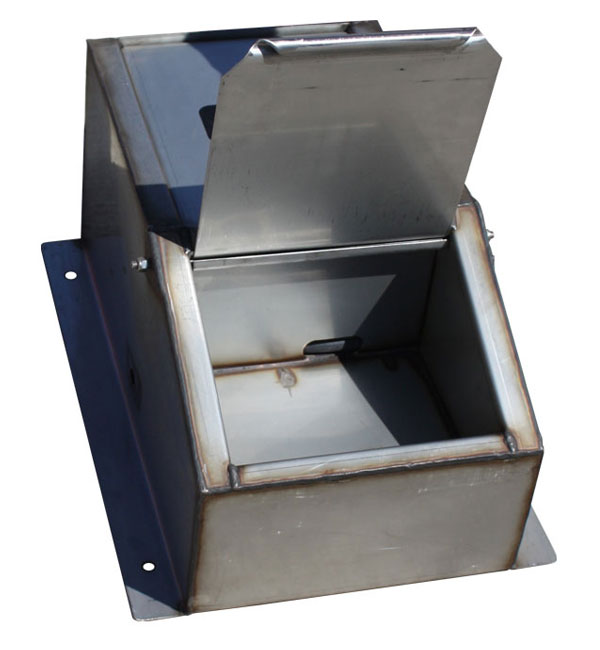

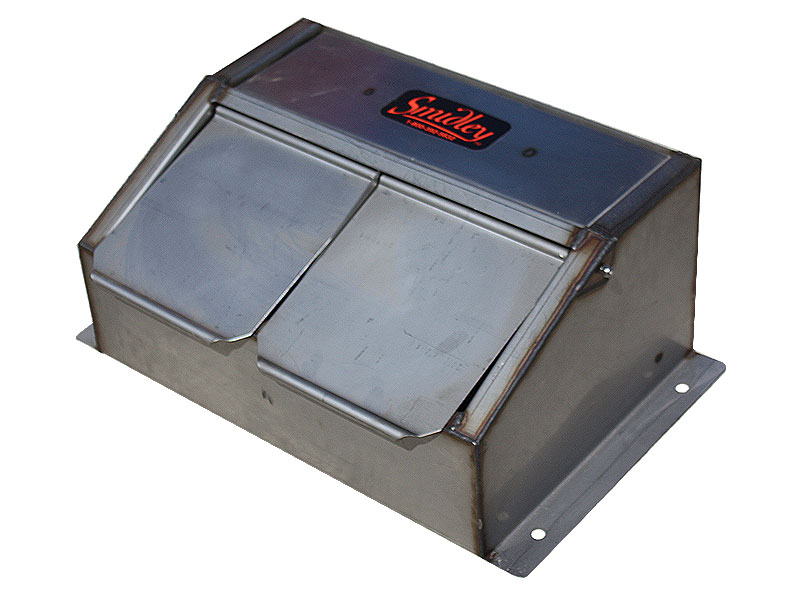

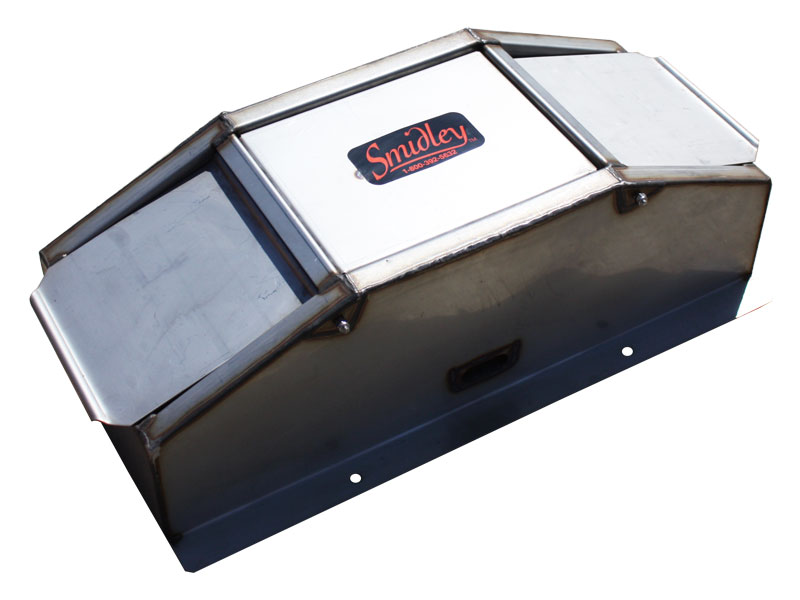

1/2 2 Drink Hog Bar 2 Drink Hog Bar Hog Bar Open
Stainless Steel
1/2 2 Drink Hog Bar		 Stainless Steel
2 Drink Hog Bar		 Hog Bar Open

  • Available in 304 stainless steel.
  • Heavy 14 gauge construction.
  • Heavy 12 gauge drink lids.
  • Easy Maintenance.
  • Easy access.
  • Simple gravity access top cover.
  • Simple and easy parts replacement.
  • Energy efficient.
  • Thick Styrofoam insulation (2.7 R. Factor).
  • Easy to adjust thermostat.
  • For maximum efficiency use the largest tile the waterer will accommodate.
