Gating

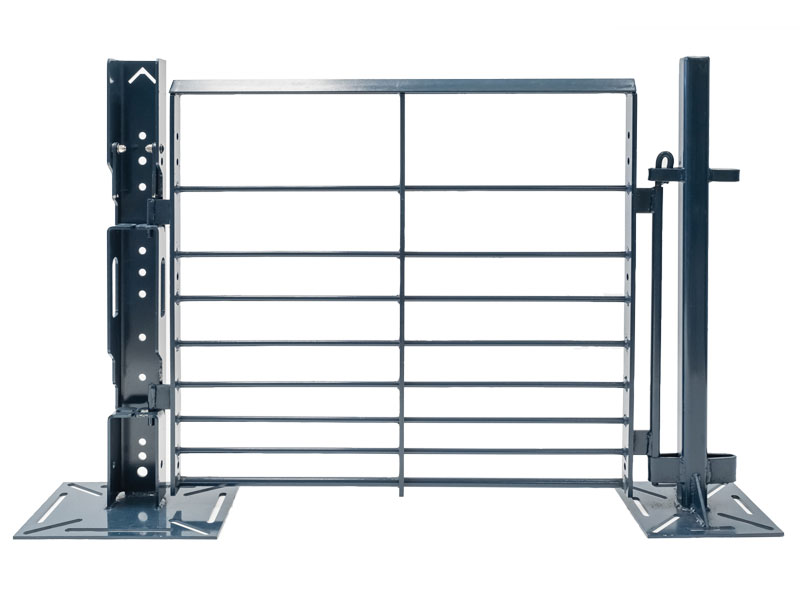

Smidley™ makes one of the most durable penning solutions for the swine industry. Smidley’s products are known for quality, innovation, and longevity. Smidley stands behind their product with a full range of services including layout, design, CAD prints, and custom penning solutions to match current installs. All gates are painted standard blue, color options available, or left unfinished. A complete line of hinges and fasteners support a modular system that can be configured to meet specific room styles. The top of the gate is constructed of 1½” x 3/16” mild steel. The ½” rods and ¾” bottom rod are solid steel rods that pass through all uprights for added strength and durability. Uprights are constructed of ¼” x 2” mild steel.


Gating Specifications



Gating
Size Purpose
31" Nursery
33" Wean to Finish
39 1/2" Boar to Sow

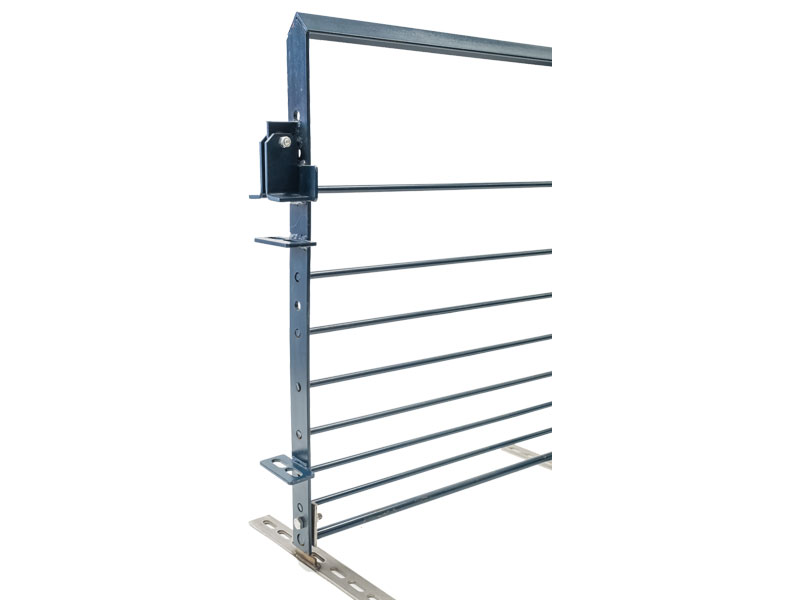

Gate Quick Attach SS Foot Double Flipper Attachment
Gate Quick Attach SS Foot Double Flipper Attachment
  • Constructed with the highest quality angle iron and solid rods to endure conditions
  • Uprights are welded for improved durability
  • Many options are available for hinge style to meet specific needs
  • A variety of feet are available including the quick attach 1/4” SS foot for added versatility

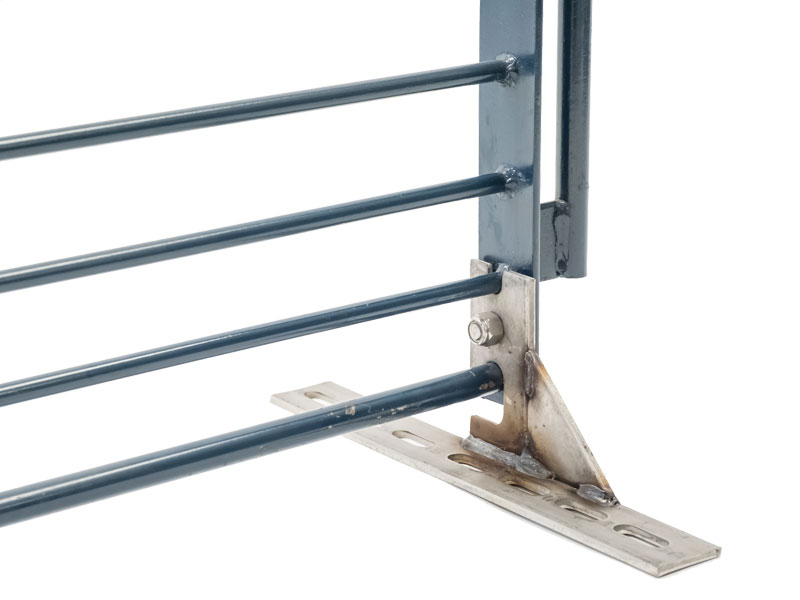

  • The quick attach SS foot with gusset is placed between the bottom two rods and bolted to the upright to provide support for the gate before fastening. The added flexibility during room placement is a plus for all. Other fastener options are available if the quick attach is not preferred.
  • Smidley’s gates can be secured with drop rods and rod guards or with hinge pin and double flipper attachment
